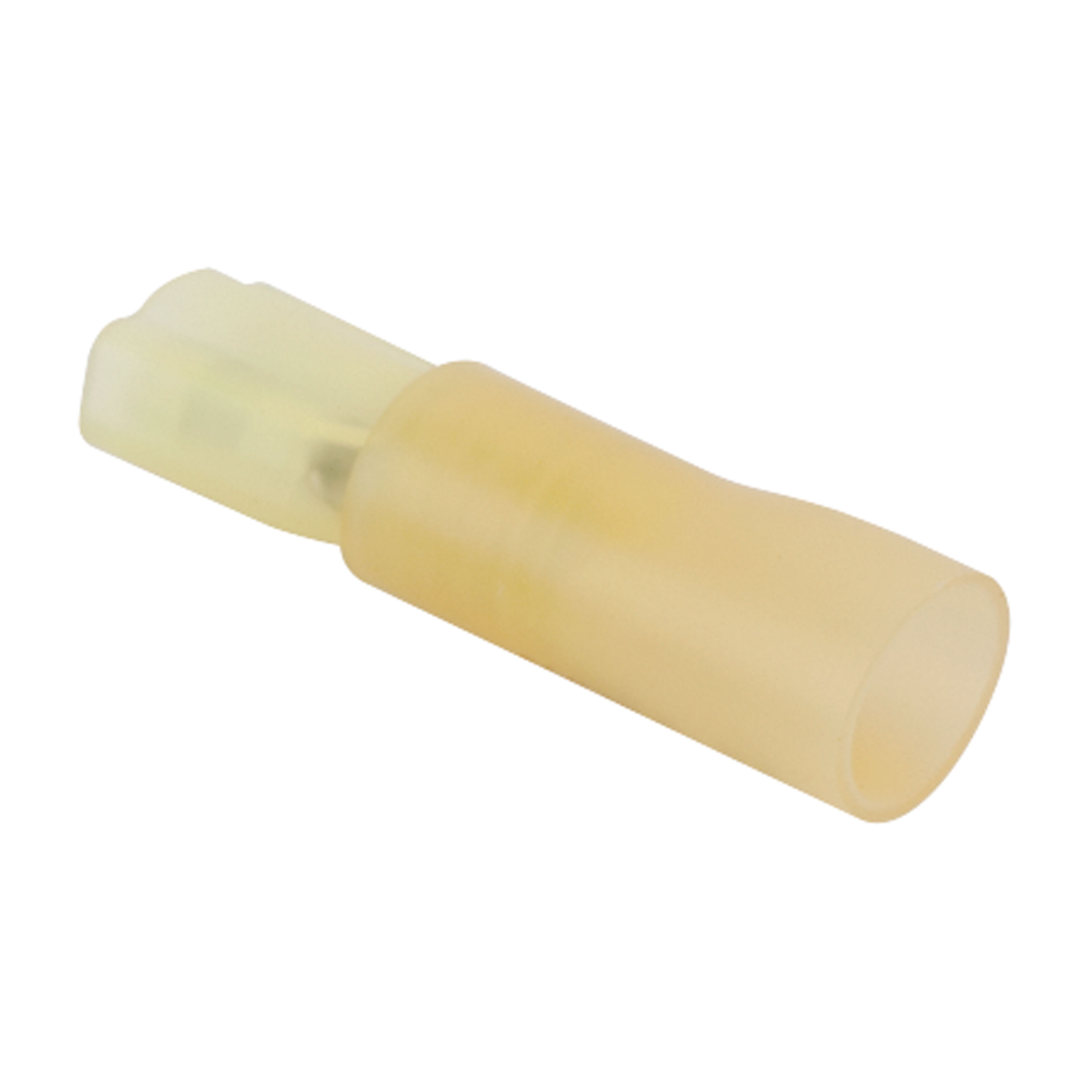

Let’s Dive into Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga
Electrical connections are the lifeblood of any marine vessel or off-grid power system. A poor connection can lead to frustrating intermittent failures or even dangerous arcing. This is where the Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga comes into play. It promises a quick, secure, and insulated connection for your 12-10 gauge wiring.
My old boat was plagued with corroded and unreliable spade connectors, leading to flickering lights and a constantly failing bilge pump. I needed a solution that would be both reliable in a harsh marine environment and easy to install in tight spaces. Enter the Sea-Dog push-on connector. Upon unboxing, the immediate impression was of a robust, well-insulated connector. The nylon housing felt sturdy, and the tin-plated copper promised good conductivity and corrosion resistance.
I considered using standard, uninsulated spade connectors with heat shrink tubing, a common DIY solution. However, the Sea-Dog connector offered a cleaner, more professional look, and the integrated insulation saved time and effort. My initial excitement was tempered by the price; $8.99 seemed a bit steep for a single connector. However, I was hopeful the quality and ease of use would justify the cost.
Real-World Testing: Putting Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga to the Test
First Use Experience
The initial test involved replacing a faulty connector on my boat’s navigation light wiring. The connection was located in a cramped, damp area behind the instrument panel. Installation was incredibly simple: strip the wire, push it into the connector, and crimp. The push-on design allowed for easy mating with the existing male spade connector. The nylon insulation provided a secure grip, even with wet hands.
The Sea-Dog connector performed flawlessly during the initial test. The navigation light immediately illuminated, and the connection felt solid and secure. I intentionally jiggled the wires to simulate vibration and wave action, and the connection remained stable. I tested the voltage at the connection and confirmed that there was no voltage drop, indicating good conductivity.
Extended Use & Reliability
After several months of use in varying conditions, the Sea-Dog connector has held up admirably. The boat has been through heavy rain, intense sunlight, and rough seas. Despite these challenges, the connector shows no signs of corrosion or degradation. The nylon insulation remains intact and flexible.
Maintenance has been minimal; I simply wipe the connector with a damp cloth occasionally to remove any accumulated salt spray. This connector significantly outperforms the previously used uninsulated connectors, which required frequent cleaning and replacement due to corrosion. The Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga has delivered on its promise of reliability and ease of use.
Breaking Down the Features of Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga
Specifications
The Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga boasts several key specifications:
- Size: .250″ This refers to the standard spade connector size, ensuring compatibility with most male spade terminals.
- AWG: 12-10 Designed for use with 12-10 gauge wires, the most common sizes for general electrical wiring in boats and vehicles.
- Color: Yellow The yellow color indicates the wire gauge range, making it easy to identify the correct connector for the job.
- Material: Tin Plated Copper, Injection Molded Nylon Tin-plated copper provides excellent conductivity and corrosion resistance, while the injection-molded nylon offers durable and reliable insulation.
- Type: Female Push-On Terminal This is a standard female spade connector with a push-on design, allowing for quick and easy connections.
These specifications are important because they directly impact the connector’s performance and reliability. The tin-plated copper ensures a good electrical connection that resists corrosion. The nylon insulation provides a safe and secure barrier against shorts.
Performance & Functionality
The Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga performs its job exceptionally well. The connection is secure, reliable, and well-insulated. I have not experienced any issues with intermittent failures or voltage drops since switching to these connectors.
The strength of this connector lies in its simplicity and robust construction. The push-on design makes installation quick and easy, even in tight spaces. The high-quality materials ensure long-lasting performance in harsh environments. While it may seem like a simple component, the reliability of these connectors can make a significant difference in the overall performance of an electrical system.
Design & Ergonomics
The design of the Sea-Dog connector is straightforward and functional. The nylon housing is ergonomically shaped for a comfortable grip. The push-on design eliminates the need for complicated tools or techniques.
The connector is lightweight and compact, making it easy to handle and install in confined spaces. The yellow color coding is a useful visual aid for identifying the correct wire gauge. Overall, the design is well-thought-out and user-friendly.
Durability & Maintenance
The Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga is built to last. The high-quality materials and robust construction ensure long-term durability. The tin-plated copper resists corrosion, and the nylon insulation protects against abrasion and impact.
Maintenance is minimal; occasional cleaning with a damp cloth is all that is required to keep the connector in good working condition. This connector is a significant upgrade over standard uninsulated connectors, which require frequent cleaning and replacement due to corrosion.
Accessories and Customization Options
The Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga is a self-contained unit and does not require any additional accessories. However, it is compatible with a wide range of male spade connectors from various brands.
There are no specific customization options available for this connector. Its simplicity and standardized design are its strengths. The focus is on providing a reliable and easy-to-use connection, rather than offering a wide range of customization options.
Pros and Cons of Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga
Pros
- Easy and quick installation The push-on design simplifies the connection process, saving time and effort.
- Reliable and secure connection The high-quality materials and robust construction ensure a stable and dependable electrical connection.
- Excellent corrosion resistance The tin-plated copper resists corrosion, making it ideal for marine and other harsh environments.
- Durable nylon insulation The nylon housing provides durable and reliable protection against shorts and abrasion.
- Standardized design Compatible with a wide range of male spade connectors.
Cons
- Relatively expensive At $8.99 per connector, it is more expensive than standard uninsulated connectors.
- Limited customization options Does not offer any specific customization or modification options.
Who Should Buy Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga?
The Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga is perfect for boat owners, RV enthusiasts, automotive technicians, and anyone working with electrical wiring in harsh environments. It is also a great choice for DIYers who value quality and ease of use.
Anyone looking for the cheapest possible connector should skip this product. While the Sea-Dog connector offers excellent value for its price, there are cheaper alternatives available. However, these alternatives often sacrifice quality and reliability.
A quality crimping tool is a must-have accessory for using these connectors. A good crimping tool will ensure a secure and reliable connection. I recommend a ratcheting crimping tool with insulated handles.
Conclusion on Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga
The Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga is a high-quality and reliable electrical connector that offers excellent value for its price. While it may be more expensive than standard uninsulated connectors, the added durability, corrosion resistance, and ease of use make it a worthwhile investment.
The price is justified by the quality of materials and the peace of mind knowing the connection is secure and reliable. I personally recommend this connector to anyone looking for a dependable and long-lasting solution for their electrical wiring needs.
Don’t let unreliable electrical connections leave you stranded! Invest in the Sea-Dog Sea Dog Nylon Insulated Push On Connector Female 12 10 Ga and experience the difference a quality connector can make. You won’t regret it!
