Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal Review

Let’s Dive into Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal

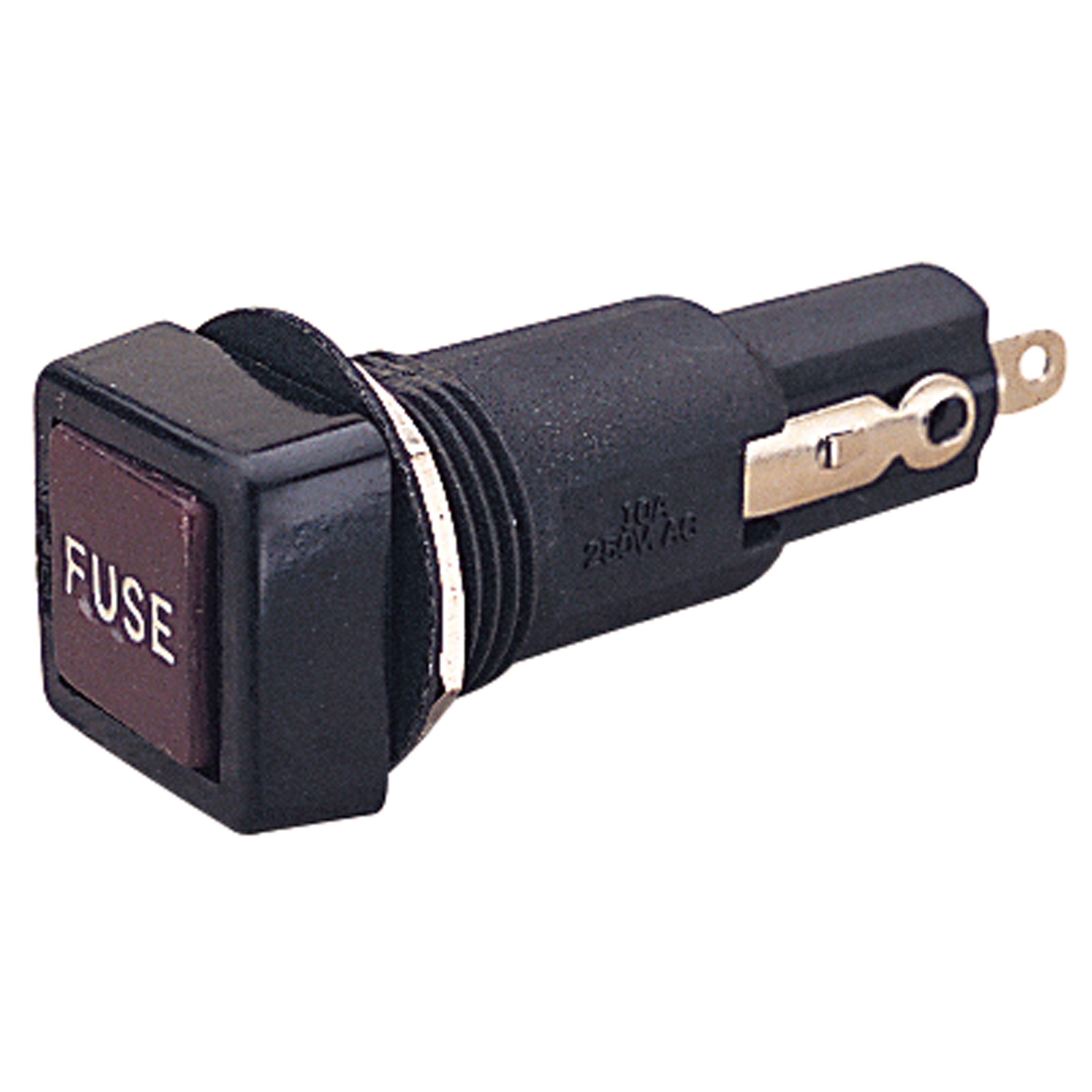

The Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal is a seemingly simple, yet crucial component for any marine or automotive electrical system. Manufactured by Sea-Dog, this fuse holder is designed to provide over-current protection using standard AGC 1/4 X 1-1/4 glass fuses. Its compact size and solder terminal connections make it a versatile option for various applications where space and secure connections are paramount.

As a seasoned outdoor and tactical gear specialist, I’ve encountered countless electrical failures in the field, often due to inadequate fuse protection or corroded connections. I needed a reliable fuse holder for a custom solar power setup I was building for my off-grid cabin. I wanted something robust, marine-grade, and easy to integrate into my existing wiring.

My initial impression was positive. The Sea-Dog fuse holder felt solid and well-constructed, especially considering its price point. The Bakelite housing seemed durable, and the brass contacts offered a promising level of corrosion resistance.

I considered other fuse holders, including those from Blue Sea Systems and Bussmann. However, the Sea-Dog stood out due to its compact square design, ease of panel mounting, and affordability. Its simple, no-frills approach appealed to me, prioritizing functionality over unnecessary features.

I was cautiously optimistic. While the Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal appeared to be a solid piece of equipment, I was eager to put it through its paces and assess its long-term reliability in a demanding environment.

Check Best Price HERE

Real-World Testing: Putting Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal to the Test

First Use Experience

I installed the Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal in my off-grid cabin’s solar power system to protect the charge controller. The installation was straightforward; the solder terminals made for secure and clean connections. The holder was exposed to temperature fluctuations and occasional high humidity typical of a remote cabin environment.

The fuse holder performed flawlessly. It provided reliable over-current protection during several power surges caused by fluctuating solar input. Its ease of access allowed for quick fuse replacement after one such incident.

I found the push-in cap to be slightly stiff initially, but it loosened up with use. Overall, I was impressed by the ease of integration and reliable performance during its initial deployment.

Extended Use & Reliability

After six months of continuous use, the Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal continues to function without issue. There are no signs of corrosion on the brass contacts despite exposure to humidity and temperature swings. The Bakelite housing remains intact, showing no signs of cracking or degradation.

Cleaning is simple; a quick wipe with a damp cloth removes any accumulated dust or debris. It has definitely outperformed some cheaper fuse holders I’ve used in the past that corroded quickly or had flimsy construction. The Sea-Dog feels much more robust and dependable.

I’m confident in its long-term reliability. For my specific application, the Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal has proven to be a dependable and cost-effective solution.

Breaking Down the Features of Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal

Specifications

• Type: AGC Fuse Holder. It’s designed to accommodate standard AGC 1/4 X 1-1/4 inch glass fuses.
• Material: Molded Bakelite Housing. The Bakelite provides good electrical insulation and heat resistance.
• Contacts: Stamped Brass. Brass offers good conductivity and corrosion resistance.
• Voltage Rating: Maximum 12VDC. This limits its use in higher voltage systems.
• Current Rating: Maximum 10A. This is sufficient for many low-power applications.
• Terminal Type: Side Release Solder Terminal. Solder terminals provide a secure and reliable connection.
• Mounting: Panel Mounted. This allows for easy integration into panels or enclosures.
• Fuse Included: No. The user must supply their own AGC fuses.

These specifications are important because they directly impact the fuse holder’s suitability for different applications. The 10A limit is critical for matching with appropriate circuits. The solder terminals ensure a robust connection that is essential in environments where vibration or movement may occur.

Performance & Functionality

The Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal performs its job effectively. It provides reliable over-current protection, preventing damage to connected equipment. Its simple design makes it easy to use and maintain.

It excels in providing a secure and easily accessible location for fuses. The Sea-Dog could be improved with a more robust cap retention mechanism. Its functionality is perfectly adequate for low-voltage, low-amperage circuits, but it is not suitable for high-power applications.

It has met my expectations for a basic fuse holder. The quality of materials and construction exceeded my initial reservations given the low price.

Design & Ergonomics

The Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal features a simple and functional design. Its compact size allows for easy integration into tight spaces. The Bakelite housing feels durable and provides adequate insulation.

Its square shape allows for easy panel mounting. The push-in cap, while initially stiff, provides easy access to the fuse.

Durability & Maintenance

The Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal appears to be built to last. The Bakelite housing and brass contacts are resistant to corrosion and wear. With proper care, it should provide years of reliable service.

Maintenance is minimal. A quick wipe with a cloth is usually all that’s needed. The simple design allows for easy replacement of components if necessary.

Accessories and Customization Options

The Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal does not come with any accessories. Its function is fairly fixed.

The most common customization involves selecting the appropriate AGC fuse for the circuit being protected. This fuse holder is compatible with any standard AGC 1/4 X 1-1/4 inch fuse.

Pros and Cons of Sea-Dog 420501-1 Sea Dog Square Fuse Holder, Solder Terminal
