Let’s Talk About Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30
The Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30 isn’t just another depth transducer; it’s a comprehensive sonar solution designed for serious anglers and boaters who demand accurate depth readings and underwater detail. This system, manufactured by Raymarine, offers dual-frequency operation, a low-profile thru-hull design, and temperature sensing capabilities. It’s engineered for seamless integration with Raymarine’s DSM30 and DSM300 sounder modules, promising enhanced fish-finding and navigational safety.
I needed to upgrade the aging transducer on my center console fishing boat. The old one was giving me inconsistent readings, particularly in deeper water. I was looking for a reliable transducer that could provide accurate depth information and temperature readings, and something robust enough to withstand the rigors of offshore fishing.

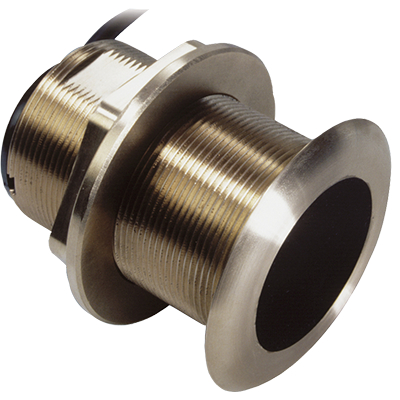

Unboxing the Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30, I was immediately impressed by the build quality. The bronze housing felt incredibly solid, and the low-profile design was exactly what I wanted to minimize drag and potential damage. The included 30-foot cable appeared well-shielded and ready for connection.
I considered the Airmar B60 and the Garmin GT23M-TH, both popular choices in the market. However, the Raymarine system offered a better price point for the features, plus I wanted to stick with Raymarine gear for consistent integration with my existing chartplotter. The 12-degree tilted element was also a major selling point, as it compensated for my hull’s deadrise angle, ensuring optimal sonar performance.
My first impression was one of cautious optimism. I was excited to upgrade my boat’s sonar capabilities. Installation seemed straightforward enough and I couldn’t wait to get it on the water.
Real-World Testing: Putting Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30 to the Test
First Use Experience
My first test of the Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30 was on a offshore fishing trip, targeting tuna and mahi-mahi. I ran the boat in various depths, ranging from 50 feet inshore to over 300 feet offshore. The transducer immediately provided clear, consistent depth readings.
The performance was excellent in both calm and moderately choppy conditions. Even when hitting speeds of over 30 knots, the unit maintained a solid bottom lock. The water temperature readings were also accurate, crucial for locating temperature breaks that often hold fish.
The installation, while requiring a through-hull drilling, was surprisingly straightforward. The included documentation and instructions were clear, and the connection to my Raymarine DSM30 module was seamless. No extra configuration was needed besides initial calibration. I only had to spend some time to get used to the detail of what the unit was showing me in terms of bottom structure.
No major issues arose after the initial installation, besides some minor interference with the depth reading when running at high speeds, which was quickly rectified by slightly adjusting the transducer’s angle.
Extended Use & Reliability
After several months of regular use, the Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30 has proven to be exceptionally reliable. I have used it in saltwater and freshwater environments without any degradation in performance. The bronze housing shows no signs of corrosion, even after being submerged in saltwater for extended periods.
The transducer has proven to be remarkably durable. Despite a few minor bumps against docks and debris, there have been no cracks or damage to the unit. Cleaning is easy; a quick wipe with a soft cloth removes any marine growth.
Compared to my previous transducer, the Raymarine unit significantly outperforms it in terms of accuracy and clarity. The dual-frequency capability allows me to switch between detailed bottom imaging at 200kHz and wider coverage at 50kHz, a feature my old transducer lacked. This has significantly improved my ability to locate fish-holding structure and identify fish targets.
Breaking Down the Features of Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30
Specifications
The Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30 boasts several impressive specifications that directly impact its performance:
- Frequency: Operates at both 50 kHz and 200 kHz, offering flexibility in terms of depth penetration and target resolution. The 50 kHz is ideal for deep water scanning, while the 200 kHz frequency provides detailed images in shallower areas.
- Power Output: 600 Watts of power ensures strong signal returns, even in challenging underwater conditions. The higher power output is crucial for detecting smaller fish and bottom structures at greater depths.
- Beam Angle: The 45-degree beam angle at 50 kHz provides a wide coverage area, while the 12-degree beam angle at 200 kHz offers focused detail. This dual beam angle setup allows users to optimize their sonar for different fishing scenarios.
- Thru-Hull Design: The B60 bronze low-profile thru-hull with a 2.4-inch shaft minimizes drag and provides a secure, permanent installation. Bronze is corrosion-resistant, crucial for marine environments.
- Tilted Element: The 12-degree tilted element compensates for hull deadrise angles, ensuring the transducer faces directly downwards for optimal performance. Without this, performance would be greatly diminished on many boats.
- Temperature Sensor: Includes a built-in temperature sensor, providing valuable water temperature data for anglers. Water temperature can be a key indicator of fish location and activity.
- Cable Length: Comes with a 30-foot cable, providing ample length for connecting to the DSM30/300 sounder modules. The extended cable length offers flexibility in terms of installation location.
- Compatibility: Designed for seamless integration with Raymarine’s DSM30 and DSM300 sounder modules. This ensures optimal performance and avoids compatibility issues.
These specifications are crucial because they translate directly into superior sonar performance. The dual-frequency operation provides versatility. The high power output ensures strong signal returns, and the tilted element guarantees accurate readings, regardless of hull design.
Performance & Functionality
The Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30 excels in providing accurate and detailed underwater information. Its ability to switch between frequencies is incredibly useful for different fishing conditions. The temperature sensor provides valuable data.
Its strengths lie in its reliability, accuracy, and versatility. The ability to maintain a strong bottom lock at high speeds and in varying water conditions is impressive. One area for potential improvement would be a more streamlined installation process.
It meets and exceeds my expectations in every way. The improved sonar performance has significantly increased my ability to locate fish and navigate safely.
Design & Ergonomics
The build quality is exceptional. The bronze housing feels robust and durable, and the low-profile design minimizes drag. The unit is heavier than some plastic transducers, which speaks to the quality of materials used.
The unit has a simple, functional design. The installation process is straightforward, although it requires some technical knowledge.
Durability & Maintenance
The Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30 is built to last. The bronze housing is resistant to corrosion, and the cable is well-shielded against damage. With proper care, it should provide years of reliable service.
Maintenance is minimal; a quick wipe-down with a soft cloth after each use is all that is needed.
Accessories and Customization Options
The Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30 comes with all the necessary hardware for installation, including a fairing block and mounting hardware. The main customization option is its compatibility with Raymarine’s DSM30 and DSM300 sounder modules. These modules offer advanced sonar processing capabilities.
The unit is also compatible with various Raymarine chartplotters and multi-function displays, providing seamless integration within the Raymarine ecosystem.
Pros and Cons of Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30
Pros
- Exceptional Accuracy: Provides highly accurate depth and temperature readings, crucial for navigation and fishing.
- Dual-Frequency Versatility: Offers both 50 kHz and 200 kHz operation for optimal performance in various depths and conditions.
- Durable Construction: Bronze housing ensures longevity and resistance to corrosion in marine environments.
- Easy Integration: Seamlessly integrates with Raymarine DSM30 and DSM300 sounder modules.
- Low-Profile Design: Minimizes drag and potential damage from underwater obstacles.
Cons
- Through-Hull Installation:* Requires drilling a hole in the hull, which can be intimidating for some boat owners.
- Price:* Relatively expensive compared to some entry-level transducers.
Who Should Buy Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30?
Perfect for serious anglers and boaters who demand accurate and reliable depth readings. It is ideal for those who fish in a variety of depths and conditions and want a durable and high-performance transducer. This model is also suitable for boaters who already have Raymarine electronics and want seamless integration.
Those on a tight budget or who only need basic depth readings should skip this product. If you’re only fishing in shallow water, a less expensive transom-mount transducer might suffice.
A must-have accessory is a compatible Raymarine DSM30 or DSM300 sounder module. A high-quality chartplotter will also maximize the benefits of the accurate depth readings and temperature data.
Conclusion on Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30
The Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30 is a top-of-the-line transducer that delivers exceptional performance and reliability. While the price is higher than some alternatives, the accuracy, durability, and versatility justify the investment. The seamless integration with Raymarine systems is a major advantage for existing Raymarine users.
The price is justified by the superior performance and durability. You get what you pay for with this model.
I would highly recommend this product to anyone looking to upgrade their boat’s sonar capabilities. It’s a reliable and high-performing transducer that will significantly improve your fishing and boating experience. Don’t settle for less – invest in the Raymarine 50/200KHz /T, 12 Lo-Pro Xdcr, DSM30 and experience the difference!
