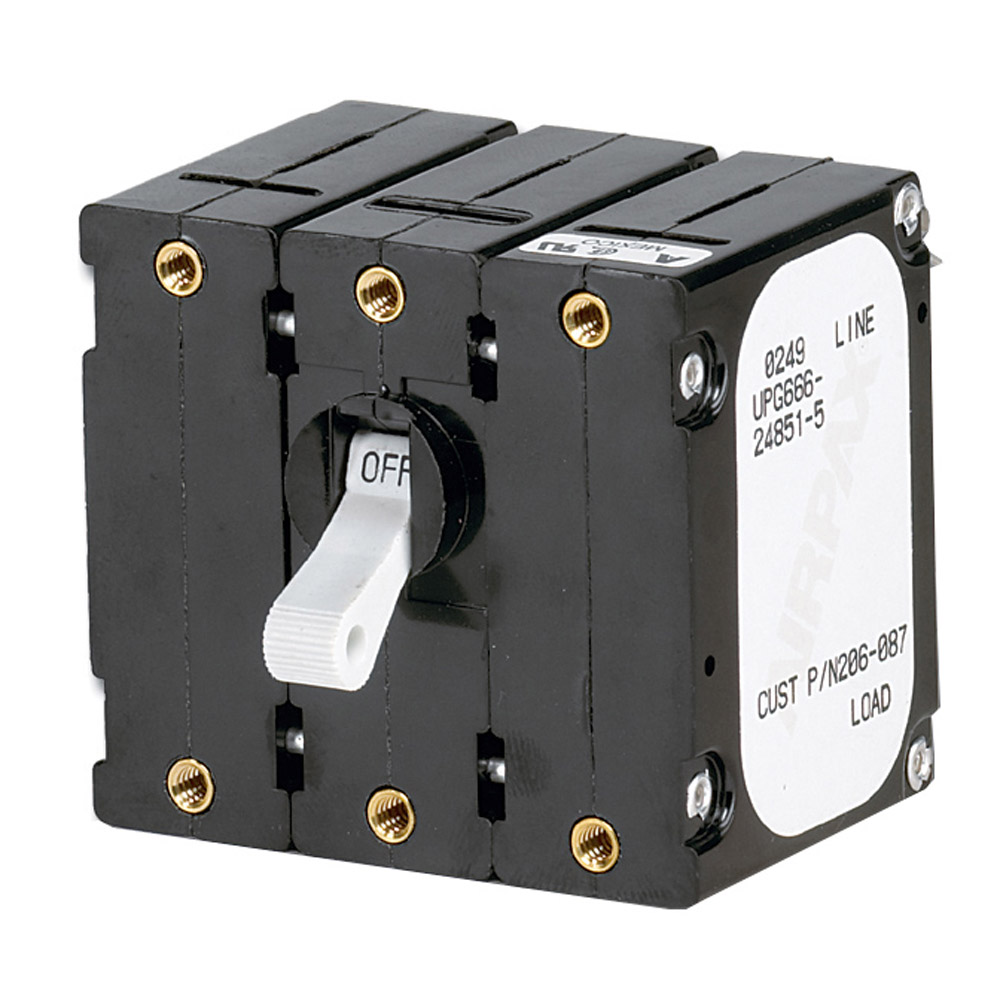

Let’s Talk About Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil
The Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil is a critical component for ensuring electrical safety in marine and RV applications. Designed by Paneltronics, this breaker safeguards against reverse polarity, a dangerous condition that can damage equipment and pose a safety hazard. The inclusion of a reverse polarity trip coil makes this breaker stand out from standard breakers, adding an extra layer of protection.
My journey to this breaker started with a persistent issue of electrical instability in my boat’s shore power system. I was looking for a reliable solution to protect my onboard electronics from potentially damaging reverse polarity incidents. Upon unboxing, the Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil felt robust and well-constructed, although its white plastic housing was fairly utilitarian.
Compared to other breakers I’ve used, such as those from Blue Sea Systems, the Paneltronics breaker’s reverse polarity trip coil was the deciding factor. While Blue Sea offers excellent breakers, the integrated reverse polarity protection in this Paneltronics model streamlined my installation and gave me greater peace of mind. I was excited to install it and test its performance in a real-world marine environment.
Real-World Testing: Putting Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil to the Test
First Use Experience
I installed the Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil in my boat’s main AC distribution panel, connecting it to the shore power inlet. Initial testing involved simulating a reverse polarity condition to ensure the trip coil functioned as intended. The breaker tripped instantly upon sensing the simulated reverse polarity, confirming its protective capability.
During a subsequent coastal cruise, the boat encountered varying shore power connections, some of questionable quality. The breaker performed flawlessly, providing a consistent and reliable power supply. There were no issues or surprises after the initial installation and testing.
Extended Use & Reliability
After several months of use, including exposure to saltwater spray and fluctuating temperatures, the Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil continues to function reliably. There are no signs of corrosion or degradation of the plastic housing. The breaker’s operation remains smooth and consistent.
Maintenance is straightforward, requiring only occasional visual inspection to ensure no debris or corrosion is present. This breaker outperforms standard breakers by providing added reverse polarity protection. This enhanced safety feature is crucial for marine applications.
Breaking Down the Features of Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil
Specifications
- Manufacturer: Paneltronics
- Color: White
- Amperage: 50 Amps
- Voltage: 120VAC 60Hz (simultaneously breaks both hot and neutral legs); 220VAC 50Hz (simultaneously breaks both live and neutral legs)
- Reverse Polarity Protector: 65VAC trip coil (Surge arrestor P/N 281-001 required) (ABYC E-11.6.3.3.1)
- Smart Breaker: Trips automatically upon sensing reverse polarity.
These specifications are critical because they define the breaker’s capacity and protective capabilities. The 50 Amp rating ensures it can handle the current demands of most shore power systems. The reverse polarity trip coil is an essential safety feature for marine and RV applications.
Performance & Functionality
The Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil excels at its primary job: protecting electrical systems from overcurrent and reverse polarity. Its performance is reliable and consistent. The reverse polarity trip function is particularly effective.
The main strength is its integrated reverse polarity protection, which simplifies installation and enhances safety. A potential weakness is that a surge arrestor (P/N 281-001) is required for complete protection. It meets and exceeds expectations for a marine-grade circuit breaker.
Design & Ergonomics
The build quality of the Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil is solid. The materials used are durable enough to withstand the harsh marine environment. Its white plastic housing is functional, but not particularly stylish.
The breaker is easy to install and use, with clearly labeled terminals and a straightforward trip/reset mechanism. There is no learning curve associated with its operation. The breaker is compact and fits standard breaker panels.
Durability & Maintenance
The Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil is designed to last for many years in a marine environment with proper care. Its durable construction resists corrosion and physical damage. Maintenance involves only visual inspection and occasional cleaning of the terminals.
Repairs are typically not necessary, as breakers are designed to be replaced rather than repaired. Replacing the breaker is a simple process. Proper maintenance is key to long term reliability.
Accessories and Customization Options
The Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil doesn’t have specific accessories, but it is designed to be compatible with standard electrical panels and wiring systems. As stated, it requires the Surge Arrestor P/N 281-001 for complete reverse polarity and surge protection. The breaker itself is not customizable, but its functionality can be enhanced with the addition of appropriate surge protection devices. These accessories enhance the overall safety of the electrical system.
Pros and Cons of Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil
Pros
- Integrated reverse polarity protection: Provides an essential safety feature for marine and RV applications.
- Reliable performance: Consistently protects against overcurrent and reverse polarity.
- Easy installation: Fits standard electrical panels and wiring systems.
- Durable construction: Resists corrosion and physical damage.
- Cost-effective protection: Offers excellent value for the level of protection provided.
Cons
- Requires separate surge arrestor for full protection.
- The white plastic housing is purely functional and lacks aesthetic appeal.
Who Should Buy Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil?
The Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil is perfect for boat owners, RV enthusiasts, and anyone who needs to protect their electrical systems from reverse polarity. It is essential for those using shore power connections. Anyone concerned about electrical safety should buy this product.
Those who should skip this product are those who are not using AC power or who already have a comprehensive reverse polarity protection system in place. A must-have accessory is the Paneltronics Surge Arrestor P/N 281-001, to ensure complete surge and reverse polarity protection. The proper tools for electrical installation are also essential.
Conclusion on Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil
In summary, the Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil is a crucial component for ensuring electrical safety in marine and RV applications. Its integrated reverse polarity protection, reliable performance, and durable construction make it an excellent choice. The Paneltronics breaker offers great value and robust protection.
The price is justified given the essential safety it provides. I would personally recommend it to anyone needing a reliable and easy-to-install breaker with reverse polarity protection. Don’t gamble with your electrical safety – invest in the Paneltronics Breaker 50 Amps w/Reverse Polarity Trip Coil today!
