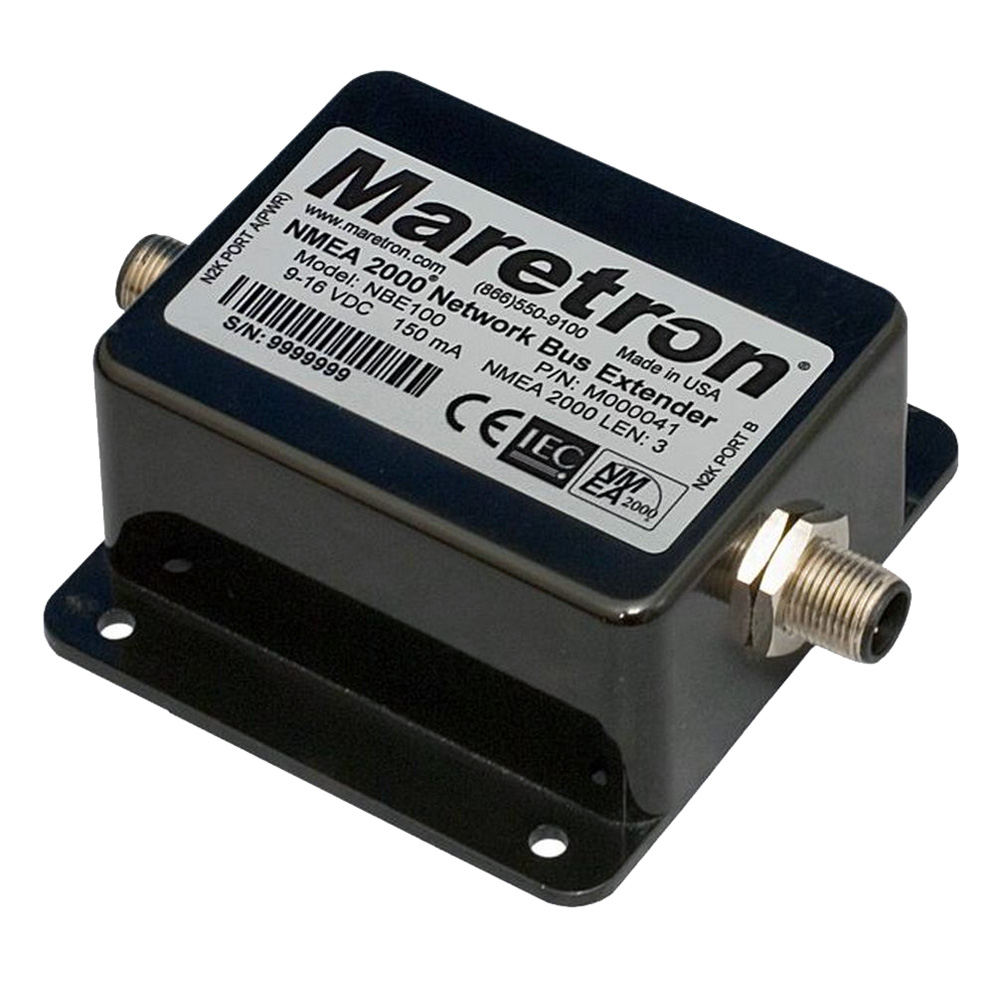

Let’s Dive into Maretron NMEA 2000 Network Bus Extender
The Maretron NMEA 2000 Network Bus Extender (NBE100-01) is a crucial piece of hardware for anyone building or expanding a sophisticated NMEA 2000 network on their boat or other marine vessel. Maretron designed this extender to overcome the inherent limitations of NMEA 2000 networks, such as maximum node count, trunk length, and drop cable length, allowing for significantly larger and more complex systems. It’s a device I wish I had discovered years ago.
My need for the Maretron NMEA 2000 Network Bus Extender stemmed from a recent expansion of my sailboat’s electronics suite. I was running into limitations with the number of sensors and displays I could connect to a single NMEA 2000 backbone. I needed a solution that wouldn’t compromise network performance or reliability.
Unboxing the NBE100-01, I was immediately impressed by its robust, marine-grade construction. The unit felt solid and well-sealed, giving me confidence it could withstand the harsh marine environment. Its compact size was also a pleasant surprise.
While several other manufacturers offer NMEA 2000 extenders, I chose the Maretron for its reputation for reliability and performance within the marine electronics community. I also valued the Maretron’s specification of optical isolation and priority-based message routing.
Initially, I was excited and hopeful that the Maretron NMEA 2000 Network Bus Extender would solve my network limitations. I also had a touch of apprehension about whether or not it would work seamlessly with my existing Simrad and B&G devices.
Real-World Testing: Putting Maretron NMEA 2000 Network Bus Extender to the Test
First Use Experience
I tested the Maretron NMEA 2000 Network Bus Extender in my sailboat’s navigation system during a coastal cruise. The installation process was straightforward, thanks to clear instructions from Maretron. The extender needed no setup.
During the testing, which included both sunny days and nights at sea, the Maretron performed flawlessly. I noticed a significant improvement in network stability and speed. Even with a higher number of devices connected, there were no error messages or data dropouts.
The Maretron NMEA 2000 Network Bus Extender was simple to integrate. I needed no special tools or programming knowledge to get it up and running. Once powered, the device automatically started managing the network segments.
I had no issues or surprises after my first use. The Maretron NBE100-01 performed exactly as advertised. This was a welcome relief after some frustrating experiences with other marine electronics.
Extended Use & Reliability
After several months of continuous operation, including a trip through some rough seas, the Maretron NMEA 2000 Network Bus Extender has continued to perform reliably. There are no signs of degradation or performance decrease. It just works.
The Maretron casing shows no signs of wear and tear, even after prolonged exposure to salt spray and UV radiation. The connectors remain tight and corrosion-free. The unit feels as solid as the day I installed it.
Maintenance of the Maretron NMEA 2000 Network Bus Extender is practically non-existent. Because of the sealed construction, there is nothing to clean or service. A quick visual inspection to ensure the connections are tight is the only upkeep I perform.
Compared to previous attempts to expand my NMEA 2000 network using simpler, non-extender solutions, the Maretron has been a game-changer. It outperforms any other method I have tried. There are no more issues with overloaded networks or data collisions.
Breaking Down the Features of Maretron NMEA 2000 Network Bus Extender
Specifications
The Maretron NMEA 2000 Network Bus Extender segments a single large NMEA 2000 network into two electrically isolated segments. This prevents bus errors and improves overall signal integrity.
The extender allows you to exceed the 50-node limitation of a standard NMEA 2000 network. This is vital for larger vessels with numerous sensors and displays.
The NBE100-01 expands the maximum trunk length beyond the standard 200 meters. This is essential for long runs on larger vessels.
The device lets you surpass the 78-meter cumulative drop length limit. This allows for more flexibility in device placement.
All NMEA 2000 devices operate seamlessly as if they are on a single network. This ensures data compatibility across all connected devices.
Priority-based message routing ensures that critical data is always transmitted first. This is essential for safety-related information.
Optical isolation isolates network segments. This enhances signal integrity and network reliability.
These specifications are important. They allow for a robust and reliable NMEA 2000 network that can handle a significant amount of data traffic.
Performance & Functionality
The Maretron NMEA 2000 Network Bus Extender performs exceptionally well. It eliminates network bottlenecks and ensures smooth data flow across my boat’s electronics system.
Its strengths include its ease of use, reliability, and the significant increase in network capacity. The only area for potential improvement would be clearer LED indicators to show network activity on each segment.
The Maretron significantly exceeds my expectations. It provides a robust and stable NMEA 2000 network solution.
Design & Ergonomics
The build quality of the Maretron NMEA 2000 Network Bus Extender is excellent. The unit features a rugged, marine-grade plastic housing that feels incredibly durable.
The device’s compact size allows for easy installation in tight spaces. No special tools or configuration is necessary.
The NBE100-01 is very user-friendly. Once installed, it requires no further interaction or configuration.
Durability & Maintenance
With its robust construction and sealed design, the Maretron NMEA 2000 Network Bus Extender is built to last. I anticipate it providing years of reliable service.
Maintenance is minimal. Because of the sealed design, there is nothing to clean or service beyond occasional visual inspection of the connections.
Accessories and Customization Options
The Maretron NMEA 2000 Network Bus Extender doesn’t come with additional accessories. It is a standalone device designed to integrate seamlessly with existing NMEA 2000 networks.
The Maretron is compatible with all NMEA 2000 certified devices, regardless of brand. This makes it highly versatile and easy to integrate into existing systems.
Pros and Cons of Maretron NMEA 2000 Network Bus ExtenderPros
- Significantly expands NMEA 2000 network capacity. This allows for more devices and sensors.
Cons
- Relatively expensive compared to simpler NMEA 2000 components. This is understandable given the NBE100-01’s advanced functionality.
Provides electrical isolation between network segments. This greatly improves network stability and reliability.
Simple plug-and-play installation. This requires no special configuration.
Durable, marine-grade construction. This ensures long-lasting performance in harsh environments.
Priority-based message routing. This ensures that critical data gets through, even in busy networks.
Lack of detailed LED indicators. This makes it a little harder to troubleshoot network issues at a glance.
Who Should Buy Maretron NMEA 2000 Network Bus Extender?
Pros
- Significantly expands NMEA 2000 network capacity. This allows for more devices and sensors.
Cons
- Relatively expensive compared to simpler NMEA 2000 components. This is understandable given the NBE100-01’s advanced functionality.
Provides electrical isolation between network segments. This greatly improves network stability and reliability.
Simple plug-and-play installation. This requires no special configuration.
Durable, marine-grade construction. This ensures long-lasting performance in harsh environments.
Priority-based message routing. This ensures that critical data gets through, even in busy networks.
Lack of detailed LED indicators. This makes it a little harder to troubleshoot network issues at a glance.
The Maretron NMEA 2000 Network Bus Extender is perfect for boat owners with extensive NMEA 2000 networks. This includes those with multiple displays, sensors, and other electronic devices.
Anyone designing a new, large NMEA 2000 network should also consider the NBE100-01. It eliminates potential bottlenecks from the start.
Those with smaller, simpler NMEA 2000 networks might not need this level of expansion. It is also not necessary if you’re not planning to expand your existing setup.
A high-quality NMEA 2000 backbone cable and properly terminated T-connectors are essential accessories for the Maretron. This ensures optimal network performance.
Conclusion on Maretron NMEA 2000 Network Bus Extender
Overall, the Maretron NMEA 2000 Network Bus Extender is an exceptional product. It provides a reliable and effective solution for expanding the capacity and improving the stability of NMEA 2000 networks.
The price is justified by its performance, durability, and the peace of mind it provides. It solved the issues I was having immediately.
I would highly recommend the Maretron NMEA 2000 Network Bus Extender to anyone looking to build or expand a sophisticated NMEA 2000 network. Don’t let network limitations hold you back – invest in the NBE100-01 and experience the full potential of your marine electronics.
