Let’s Dive into Lyman Pistol Bullet Mould: 38/357 Caliber – #358430 2660430
The Lyman Pistol Bullet Mould: 38/357 Caliber – #358430 2660430 offers reloaders a time-tested method for crafting accurate and effective projectiles. This double-cavity mould, designed by Lyman, allows handloaders to create their own 195-grain .38 Special or .357 Magnum bullets, tailoring them to specific needs and firearm preferences. With its traditional cast iron construction and secure alignment, it promises durability and consistent results. It’s a tool designed for both seasoned reloaders seeking to refine their craft and newcomers eager to explore the rewarding world of casting their own ammunition.
I had been searching for a way to customize my .357 Magnum loads for both target shooting and potential defensive use. Factory ammunition prices were climbing, and I wanted tighter control over bullet weight and hardness. I was also drawn to the idea of producing high-quality bullets at a lower cost per round than purchasing commercially available options.
The Lyman Pistol Bullet Mould arrived in a sturdy cardboard box, well-protected. The heft of the cast iron immediately impressed me, conveying a sense of robust durability. The mould’s alignment was precise, and the venting looked well-designed, promising good fill-out during the casting process.
I considered aluminum moulds from other brands, such as Lee Precision, because of their faster heat-up times. However, I ultimately chose the Lyman mould due to its reputation for long-lasting durability and consistent bullet dimensions, based on years of positive reviews from experienced reloaders. I wanted something that could stand up to high-volume casting sessions.
My initial impression was one of excited anticipation. This wasn’t just another tool; it was a gateway to crafting custom ammunition perfectly suited for my revolvers. I felt confident this mould would allow me to produce consistently accurate bullets for years to come.
Real-World Testing: Putting Lyman Pistol Bullet Mould: 38/357 Caliber – #358430 2660430 to the Test
First Use Experience
I tested the Lyman Pistol Bullet Mould in my reloading workshop, focusing on producing bullets for my Smith & Wesson Model 686 and a .38 Special snub-nosed revolver. The initial casting session took place on a cool evening, with temperatures hovering around 60 degrees Fahrenheit. I used a propane-fueled melting pot and a lead alloy consisting of reclaimed range lead, tin, and antimony.
Performance in the cool conditions was initially slower than I anticipated. The cast iron took longer to reach the optimal temperature for consistent fill-out. However, once the mould was properly heated, it began producing beautifully formed bullets with crisp details and minimal imperfections.
The learning curve was gentle but present. It took a few casts to dial in the alloy temperature and pouring technique for optimal results. I quickly learned that a smooth, consistent pouring motion was essential for minimizing voids and ensuring consistent bullet weight.
The only initial issue I encountered was minor sticking of the bullets in the mould. A light coating of Lyman Mould Prep solved this problem entirely. After that, bullet release was effortless.
Extended Use & Reliability
After several months of regular use, the Lyman Pistol Bullet Mould has proven to be a reliable and durable tool. I’ve cast hundreds of bullets with it, and the mould still operates as smoothly as it did on day one. There are no signs of wear or tear, even after numerous high-volume casting sessions.
The cast iron construction has held up exceptionally well, showing no signs of warping or degradation. The alignment remains precise, ensuring consistent bullet dimensions. Cleaning is straightforward; I simply use a brass brush and a solvent designed for removing lead residue.
Compared to my previous experience with aluminum moulds, the Lyman mould offers superior temperature stability. Once heated, it maintains a consistent temperature, resulting in more uniform bullets. This is a significant advantage for achieving consistent accuracy.
Breaking Down the Features of Lyman Pistol Bullet Mould: 38/357 Caliber – #358430 2660430
Specifications

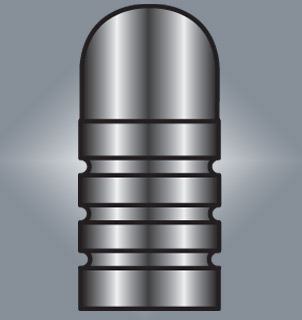

- Bullet #: 358430. This is the Lyman identifying number for this specific bullet design.
- Grain: 195gr. This refers to the intended weight of the cast bullet, making it a heavier option for the .38/357 caliber, potentially offering better energy transfer.
- Top Punch : 430. This designates the correct top punch to use when seating gas checks or lubricating the bullets with a lubricant/sizer.
- Double Cavity # : 2660430. This unique number specifically identifies the double cavity mould.
- Requires Double Cavity Handles. Standard Lyman handles are required for use with this mould; they are sold separately.
- Sizing Die: .357, .358, .359, .360. These are the recommended sizing die diameters to achieve consistent bullet dimensions and optimal fit in various firearms.
- Designed as a heavy, hard-hitting, 357 Mag bullet. This design emphasizes maximizing energy transfer for hunting or defensive applications.
- Caliber: .38 Special, .357 Magnum. This mould is designed for use in firearms chambered in these calibers.
- Bullet Weight: 195 grain. The heavy bullet weight is ideal for achieving deep penetration.
These specifications are significant because they define the bullet’s intended performance characteristics. The heavy 195-grain weight is particularly well-suited for .357 Magnum, delivering substantial kinetic energy. The availability of multiple sizing die options allows the reloader to fine-tune bullet fit for optimal accuracy in their specific firearm.
Performance & Functionality
The Lyman Pistol Bullet Mould performs its job admirably, producing consistent, high-quality bullets with proper technique and alloy preparation. The bullets cast from this mould have exhibited excellent accuracy in my revolvers, rivaling or exceeding the performance of some commercial ammunition. Reloading with these bullets produced very reliable results.
The mould’s primary strength lies in its ability to consistently produce bullets of uniform weight and dimensions. However, the cast iron construction requires a longer warm-up time compared to aluminum moulds. This can be seen as a minor inconvenience.
The mould meets and exceeds my expectations. It allows me to tailor my ammunition to my specific needs. My specific needs involve consistent bullets that reload to the correct overall length and crimp consistently.
Design & Ergonomics
The mould is constructed from high-quality cast iron, providing excellent durability and heat retention. The weight of the mould feels substantial in the hand, conveying a sense of quality and robustness. While not designed for rapid-fire casting, the design is meant for rugged use.
The design is user-friendly, although some experience with casting is recommended. The mould halves align precisely, and the venting is well-designed to facilitate complete fill-out. There is a slight learning curve for new casters to learn.
Durability & Maintenance
With proper care, the Lyman Pistol Bullet Mould should last for many years, potentially even generations. The cast iron construction is highly resistant to wear and tear. Cleaning involves removing lead residue with a brass brush and solvent; lubricating the pivot points with a high-temperature grease is also recommended.
The mould appears simple to maintain and repair, although replacement parts may be required after extended use. The mould seems designed for a long lifetime if treated with care.
Accessories and Customization Options
The Lyman Pistol Bullet Mould itself doesn’t come with accessories, but requires Lyman Double Cavity Handles for operation (sold separately). The primary customization option is the choice of sizing die, allowing reloaders to adjust the bullet diameter for optimal performance in their firearms.
The mould is compatible with a wide range of Lyman and other brands’ reloading equipment. This compatibility includes lubricators/sizers, melting pots, and lead hardness testers. These accessories can be used in conjunction with the mould to achieve higher levels of precision and consistency.
Pros and Cons of Lyman Pistol Bullet Mould: 38/357 Caliber – #358430 2660430
Pros
- Durable cast iron construction for long-lasting performance.
- Consistent bullet dimensions for enhanced accuracy.
- Heavy 195-grain bullet design ideal for .357 Magnum.
- Excellent heat retention for uniform bullet casting.
- Compatible with a wide range of Lyman reloading equipment.
Cons
- Cast iron requires longer warm-up time compared to aluminum.
- Handles are sold separately.
Who Should Buy Lyman Pistol Bullet Mould: 38/357 Caliber – #358430 2660430?
This mould is perfect for experienced reloaders seeking to craft high-quality, custom ammunition for their .38 Special and .357 Magnum revolvers. It’s also a good choice for those interested in experimenting with different bullet weights and alloys to optimize performance for specific applications like target shooting, hunting, or self-defense. This is excellent for anyone looking to reduce their cost of ammunition.
This product might not be ideal for novice reloaders who are just starting out, due to the learning curve associated with casting and sizing bullets. Someone who shoots very little may also not want to get involved in casting their own bullets.
A must-have accessory is the Lyman Double Cavity Handle. Also a high quality lead thermometer is a must. A good bullet sizer and lubricant are also a wise purchase.
Conclusion on Lyman Pistol Bullet Mould: 38/357 Caliber – #358430 2660430
The Lyman Pistol Bullet Mould: 38/357 Caliber – #358430 2660430 is a well-designed and durable tool that offers reloaders the opportunity to craft high-quality, custom ammunition. While the cast iron construction requires a longer warm-up time, the resulting temperature stability and consistent bullet dimensions are well worth the effort. The price is justified considering the mould’s quality, durability, and the potential for long-term cost savings through handloading.
I would definitely recommend this mould to any serious reloader looking to enhance the performance of their .38 Special and .357 Magnum firearms. Take control of your ammunition and start casting your own bullets today!
