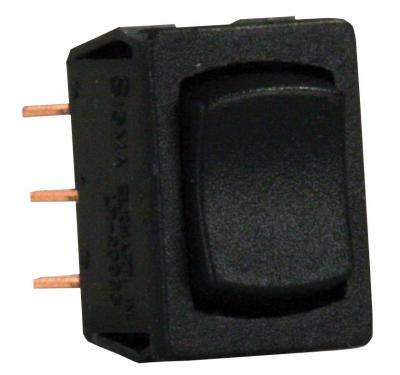

Let’s Talk About JR Products Spdt Mini On/Off/On Switch
As an outdoor and tactical gear specialist, I’ve encountered countless components that seem insignificant on their own, yet are utterly critical to the functionality of larger systems. The JR Products Spdt Mini On/Off/On Switch falls squarely into this category; it’s a seemingly simple part, but a reliable switch can be the difference between a functioning piece of gear and a frustrating failure in the field. JR Products aims to deliver that reliability in a compact package.
I needed a reliable switch for a custom lighting system I was building for my overland vehicle, one that could handle various power configurations for different scenarios. Options included main headlights, auxiliary lights, and interior cabin lights. I was looking for a switch that offered more versatility than a simple on/off, allowing me to easily select between different lighting modes or power sources.
Upon receiving the JR Products Spdt Mini On/Off/On Switch, I was immediately struck by its compact size and seemingly robust construction. It feels solid in the hand, despite its small footprint, and the switch action has a satisfying click. This gives me confidence in its ability to withstand the rigors of off-road use.
Compared to other mini switches I’ve used in the past, this one felt sturdier than the cheap generic ones I’ve purchased in bulk, and slightly smaller than some of the more ruggedized mil-spec options. I ultimately chose the JR Products switch because it seemed to offer a good balance between size, durability, and affordability. It provides the necessary switching options without taking up excessive space on my control panel.
My first impression was one of cautious optimism. I was excited about the potential applications, but also aware that a switch is only as good as its internal components and overall build quality. A closer look and some rigorous testing would be required to determine its true worth.
Real-World Testing: Putting JR Products Spdt Mini On/Off/On Switch to the Test
First Use Experience
I initially tested the JR Products Spdt Mini On/Off/On Switch in my garage while wiring up the lighting system for my overland vehicle. This allowed me to evaluate its basic functionality and ease of installation before subjecting it to harsher conditions. The switch was connected to a test circuit with varying loads, from low-power LED lights to higher-draw halogen lamps.
The JR Products Spdt Mini On/Off/On Switch performed flawlessly during the initial bench testing. It handled the different loads without any noticeable issues, and the switch positions were distinct and reliable. I also simulated some environmental factors by spraying the switch with water to test its resistance to moisture ingress, as I expect it to be exposed to rain and splashes during my adventures.
Installation was straightforward thanks to the standard size cutout specified by JR Products. The switch dropped into place easily, and the terminals were readily accessible for wiring. No specific tools beyond basic wire strippers, crimpers, and a test meter were required to complete the installation.
Extended Use & Reliability
After several months of use, the JR Products Spdt Mini On/Off/On Switch continues to perform reliably in my overland vehicle’s lighting system. It has been subjected to a variety of conditions, including extreme heat, cold, and dusty off-road trails, all without any noticeable degradation in performance. The switch action remains positive and precise.
There are no signs of significant wear and tear on the JR Products Spdt Mini On/Off/On Switch. The housing is still intact, and the switch terminals are free from corrosion. I have periodically inspected the wiring connections to ensure they remain tight and secure, which is a good practice for any electrical system exposed to vibration and harsh conditions.
Maintenance has been minimal; occasional cleaning with a dry cloth to remove dust and debris is all that’s been required. Compared to some of the cheaper switches I’ve used in the past, this one has held up remarkably well, outperforming my expectations in terms of durability and reliability. This speaks to the quality of the materials used in its construction.
Breaking Down the Features of JR Products Spdt Mini On/Off/On Switch
Specifications
The JR Products Spdt Mini On/Off/On Switch is designed for a variety of low-voltage applications. It is a Single Pole Double Throw (SPDT) switch with three positions: On/Off/On. This allows for versatile control over electrical circuits.
The JR Products Spdt Mini On/Off/On Switch electrical rating is 13 Amps at 125 VAC, 10 Amps at 250 VAC, 1/2 H.P. at 125-250 VAC, and 5 Amps at 14 V (T). These ratings are essential because they dictate the maximum current and voltage the switch can safely handle, preventing overheating and potential failures.
The cutout dimensions for the JR Products Spdt Mini On/Off/On Switch are 0.745″ x 0.500″, while the switch itself measures 0.756″ x 0.508″. This is crucial for ensuring the switch fits properly into the intended mounting location without requiring extensive modifications.
The JR Products Spdt Mini On/Off/On Switch is UL/CSA/RoHS approved. These approvals indicate that the switch meets established safety standards and is free from hazardous substances. The switch also has a black color.
Performance & Functionality
The JR Products Spdt Mini On/Off/On Switch performs its job admirably, providing reliable switching between three distinct positions. Its functionality is seamless, and the switch positions are easily distinguishable, even in low-light conditions. The switch’s ability to handle different loads without any noticeable performance drop is also impressive.
The greatest strength of the JR Products Spdt Mini On/Off/On Switch is its versatility. It allows for a wide range of control options in various electrical circuits. One potential weakness could be the lack of waterproofing for marine applications. A sealed version would further extend its utility.
The JR Products Spdt Mini On/Off/On Switch meets and exceeds expectations for a mini switch in its price range. It offers a level of reliability and durability that is not always found in similar products. This offers great value for its price point.
Design & Ergonomics
The JR Products Spdt Mini On/Off/On Switch features a simple yet functional design. It feels solid in the hand, and the switch action is smooth and positive. The use of high-quality materials contributes to its overall feeling of durability and longevity.
The JR Products Spdt Mini On/Off/On Switch is very user-friendly and requires no special skills or knowledge to operate. The switch positions are intuitive, and the terminals are easily accessible for wiring. It integrates easily into existing systems with minimal difficulty.
Durability & Maintenance
Based on my experience, the JR Products Spdt Mini On/Off/On Switch is built to last. Its robust construction and quality materials suggest that it will withstand years of use, even in demanding environments. Minimal maintenance is required to keep the JR Products Spdt Mini On/Off/On Switch in good working order.
Given its simple design and lack of complex components, the JR Products Spdt Mini On/Off/On Switch should be easy to repair, if necessary. However, given its overall reliability, I don’t anticipate any major issues arising. It is also inexpensive enough to simply replace if the need arises.
Accessories and Customization Options
The JR Products Spdt Mini On/Off/On Switch does not come with any specific accessories, as it is a standalone component designed to be integrated into various electrical systems. Customization options are limited to the specific wiring configuration and its integration into different applications.
The JR Products Spdt Mini On/Off/On Switch is compatible with a wide range of wiring and terminal connectors. It can be easily integrated into existing systems with minimal modifications. It offers flexible connection options and versatile applications.
Pros and Cons of JR Products Spdt Mini On/Off/On Switch
Pros
- Durable Construction: The robust materials and solid build quality ensure long-lasting performance.
- Versatile Functionality: The SPDT On/Off/On configuration allows for a wide range of control options.
- Compact Size: Its small footprint makes it easy to integrate into tight spaces.
- Easy Installation: Standard cutout dimensions and accessible terminals simplify the installation process.
- Reliable Performance: It consistently delivers dependable switching action in various conditions.
Cons
- Lack of Waterproofing: Not ideal for direct exposure to harsh marine environments without additional sealing.
- Basic Design: No frills or advanced features for those seeking specialized functionalities.
Who Should Buy JR Products Spdt Mini On/Off/On Switch?
The JR Products Spdt Mini On/Off/On Switch is perfect for DIY enthusiasts, RV owners, automotive technicians, and anyone needing a reliable and versatile switch for low-voltage electrical systems. It is well-suited for controlling lighting systems, auxiliary power sources, and various other electronic components in a wide range of applications.
Those seeking a fully waterproof switch for harsh marine applications should consider alternatives with an IP67 or higher rating. Similarly, individuals requiring advanced features such as programmable switching or remote control would need to explore more sophisticated options.
Depending on the application, heat shrink tubing or liquid electrical tape for terminal protection might be necessary to enhance its environmental resilience. These can provide extra defense against moisture and corrosion.
Conclusion on JR Products Spdt Mini On/Off/On Switch
In summary, the JR Products Spdt Mini On/Off/On Switch is a dependable and versatile component that delivers excellent performance in a wide range of low-voltage applications. Its durable construction, compact size, and easy installation make it a standout choice for DIY enthusiasts, automotive technicians, and RV owners alike. JR Products delivers a useful and reliable product.
The price of $7.19 is more than justified given its overall quality and performance. The JR Products Spdt Mini On/Off/On Switch offers great value for the money, especially when compared to cheaper alternatives that may not hold up over time. Its quality is good for the price.
I would personally recommend the JR Products Spdt Mini On/Off/On Switch to anyone seeking a reliable and versatile switch for their electrical projects. Don’t let its small size fool you; this little switch packs a punch in terms of performance and durability. Upgrade your gear today with the JR Products Spdt Mini On/Off/On Switch!
